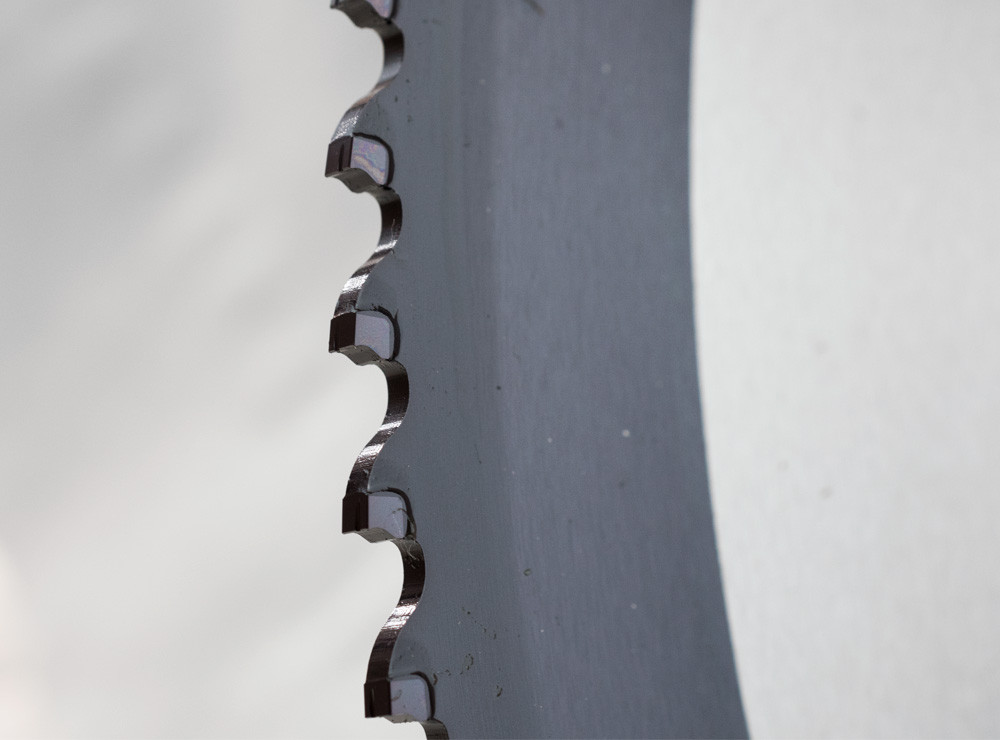

NYX SSP

TCT coated circular saw blade for metal cutting, especially for particularly tough materials. Rescharpeable.
Depending on specific application can be developed a special tooth geometry.
Code: 745

APPLICATION AREA:

Cutting big section of stainless steel thin walled tubes on stationary machines (high speed).
According to the application is possible to choose the appropriate type of blade.
Material form
Square tubesSquare tubes Tubes, thin-walledTubes, thin-walled
Blade type
TCT
Machine type
High speed stationary
Information request
Catalog Download
RI.F.SAW Srl Regrinding service

TCT Technical Characteristics

Ø Tooth thickness mm Body thickness mm Bore mm
100 110 120 130 140 150 160
250 2 1,7/1,75 32/40
285 2 1,7/1,75 32/40
315 2 1,7 32/40/50
315 2,5 2,25 32/40/50
350 2,5/2,6/2,7 2,25/2,30/2,40 32/40/50
360 2,5/2,6/2,7 2,25/2,30/2,40 32/40/50
370 2,5/2,6/2,7 2,25/2,30/2,402,4 32/40/50
380 2,5/2,6/2,7 2,25/2,30/2,40 32/40/50
400 2,6 2,25/2,30 32/40/50
420 2,7 2,25/2,30 40/50
425 2,7 2,25/2,30 40/50
450 2,7 2,25/2,27/2,30 40/50
460 2,7 2,25/2,27/2,30 40/50
480 2,7 2,25/2,27/2,30 40/50
520 2,7 2,25/2,30 50
560 3,2 2,70/2,80 50
580 3,2 2,70/2,80 80
630 3,2 2,70/2,80 80
